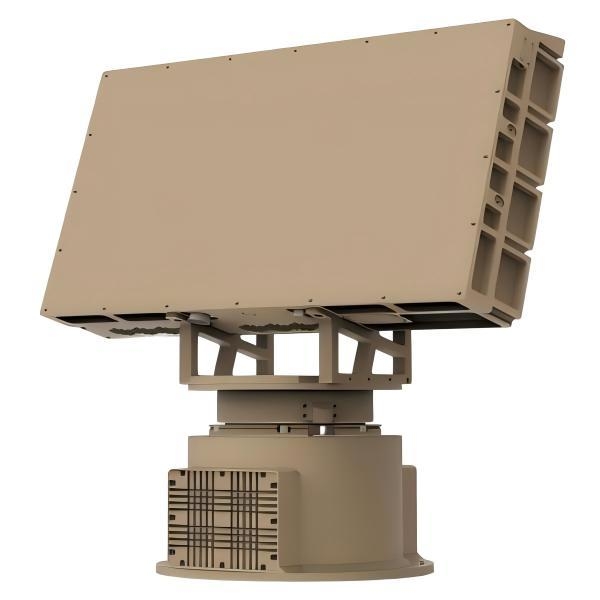

10km High-Accuracy High-Precision Low-Altitude Surveillance Radar All-Weather

Ⅰ.  Product Overview:

The LKXR-RD109 Ku-band digital beamforming (DBF) radar employs an all-solid-state, fully coherent, pulse-Doppler technology system and is based on proprietary machine-learning and AI-based intelligent recognition technologies. It is capable of detecting and identifying "low, small, and slow" (LSS) targets in all weather conditions. The radar uses shaped transmission beams and digital multibeam reception technology, achieving a target update rate of up to 2 seconds, enabling stable detection of fast and highly maneuverable targets.

Ⅱ.  Product Features

- All-Solid-State Design: No mechanical moving parts, ensuring high reliability and low maintenance costs.

- High-Precision Detection: Range accuracy <10 meters, azimuth accuracy <0.4°, and elevation accuracy <0.5°.

- Fast Target Updates: Target update rate ≤2 seconds, allowing for stable tracking of fast and highly maneuverable targets.

- All-Weather Operation: Capable of operating within a temperature range of -40℃ to +55℃, suitable for various harsh weather conditions.

- Digital Multibeam Technology: Digital multibeam reception technology enhances detection efficiency and accuracy.

Ⅲ. Qualification

Ⅳ. Selling Points

- Long-Range Detection: Detection range ≥10 km for targets with an RCS of 0.01 square meters.

- Low Blind Zone: Blind zone ≤200 meters, effectively detecting close-range targets.

- Wide-Angle Coverage: Full azimuth coverage of 360° and elevation coverage from 0° to 40°, eliminating detection blind spots.

- High Cost-Effectiveness: Offers highly competitive pricing while ensuring high performance.

- Easy Integration: Standard network interface provided for easy integration with existing systems.
