Ⅰ. Product Overview:

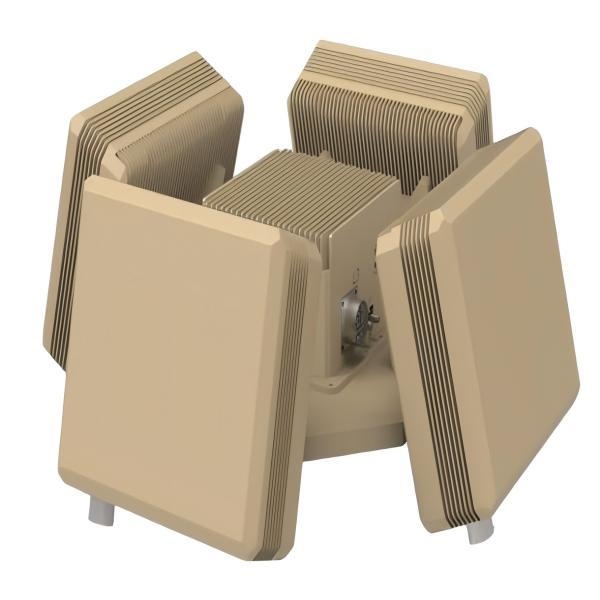

The LKXR-RD110 family is a new generation of X-band, short-range radars purpose-built for the “last line of defense.” By combining solid-state amplifiers, fully coherent pulse-Doppler processing and on-board AI inference, the radar can spot a 0.01 m² micro-UAV 1.5 km away—even in rain, fog or dense urban clutter. Three mechanical variants—fixed single-panel, single-panel on turntable, or four-panel array—let users scale from a narrow alley to a wide airport apron.
Ⅱ. Product Features
• Micro-gap radar: blind zone ≤80 m—targets cannot sneak in under the nose.
• 3-D electronic fence: 0–60° elevation electronic scan, azimuth ±45° or full 360° options; no airspace left unchecked.
• AI on the edge: neural network delivers object type and trajectory in 0.5 s at 2 Hz refresh.
• LEGO-style scaling: the 8 kg single-panel slips into a backpack; the 40 kg four-panel guards an entire perimeter.
• Plug-and-play: one RJ45 and a RESTful API handshake with EO/IR or jammers in 15 minutes.
• Always on duty: ‑40 °C frozen soil to +55 °C desert, IP66-rated, 24/7 operation.
Ⅲ. Qualification
|
Parameter
|
110A
|
110B
|
110C
|
|
Frequency
|
X-band
|
|
Installation
|
Fixed single-panel
|
Single-panel+Turntable
|
4-panel array
|
|
Detection range
|
≥1.5 km (RCS=0.01 m²)
|
|
Blind zone
|
≤80 m
|
|
Coverage
|
Az ±45°
El 0–60°
|
Az 360°
El 0–60°
Az 360°
El 0–60°
|
|
Velocity range
|
1–100 m/s
|
1–100 m/s
|
1–100 m/s
|
|
Accuracy
|
Range ≤10 m; Az ≤1.2°; El ≤1.2°
|
|
Data refresh
|
Search ≤3 s; TAS ≤0.5 s
|
|
Interface
|
Gigabit Ethernet
|
|
Weight
|
≤8 kg
|
≤20 kg
|
≤40 kg
|
|
Power supply
|
DC 24 V / AC 220 V
|
|
Power consumption
|
≤140 W
|
≤170 W
|
≤560 W
|
|
Dimensions
|
≤180×240×100 mm
|
≤500×240×200 mm
|
≤600×600×200 mm
|
|
Operating temp.
|
-40 °C to +55 °C
|
Ⅳ. Selling Points
1. Deploy in 5 minutes—faster than pitching a tent.
2. 8 kg soldier-carry version—lighter than a case of bottled water.
3. 1.5 km vs 0.01 m² drone—longest reach in its size class.
4. 0.5 s TAS refresh—gives effectors a golden interception window.
5. Order one or stack many—budget-friendly today, limitless tomorrowXR-RD10
